Brand Name: OOTDTY
Hign-concerned Chemical: None
DIY Supplies: ELECTRICAL
Origin: Mainland China
Dimensions: see information
Operating Temperature: see information
Accuracy Class: see information
Display Type: Digital Only
Power Supply: Battery
Certification: CE

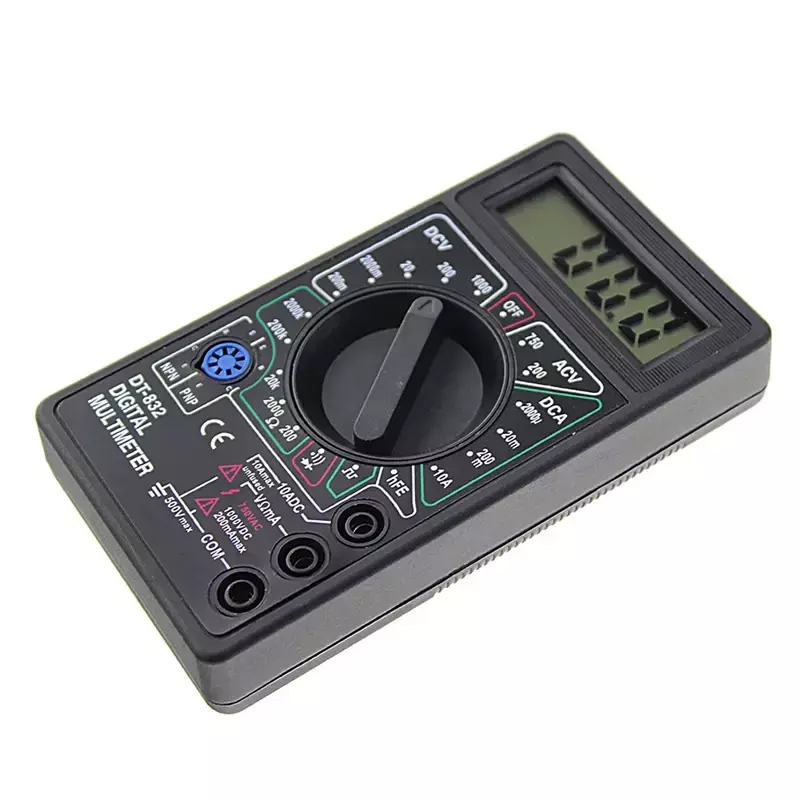

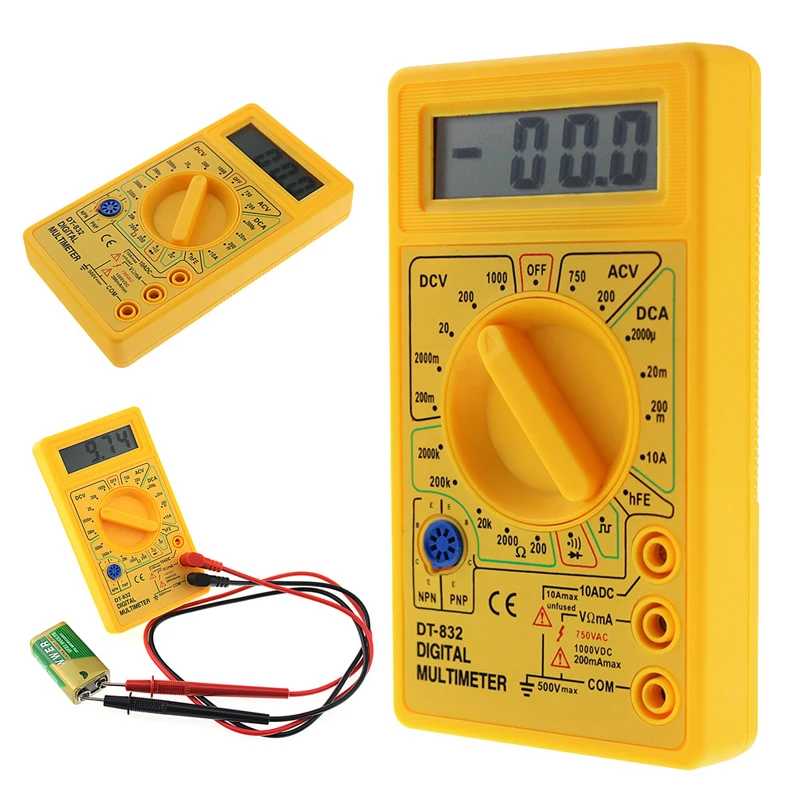

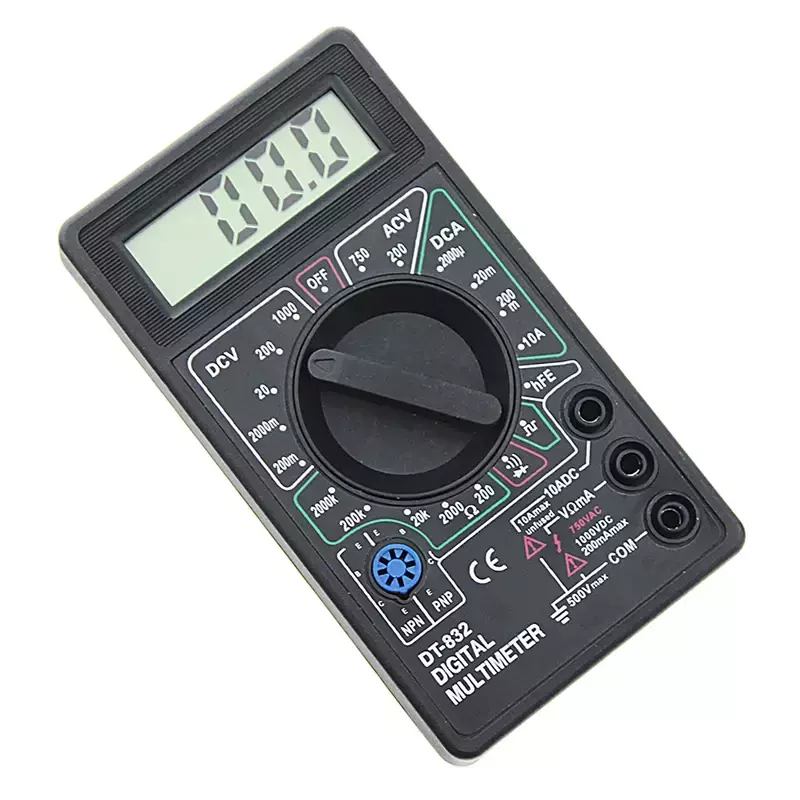

Description: A practical tool for electrician use. It is easy to operate and the readings indicated directly on the screen. It can be used to overhaul all kinds of circuit boards. It is also an ideal teaching instrument for students. Features: 3 digits, 7segment, 0.5"high LCD Display Max display: 1999, Auto polarity display Small and compact design Overload protection on all ranges Sampling 2~3 times readings per second Diode assembly test / Transistor P-N junction test / Transistor hFE test Low battery voltage indication Specifications: Model: DT832 Measuring range: Max AC Current: 10A Max AC Voltage range: 1000V Max DC Voltage range: 750V Resistance Measurement: 200 Ohm-2000K Ohm range Buzzer: Yes Function Range Resolution Accuracy200mV 100uV2000mV 1mVDC Voltage 20V 10mV ±(0.5%+2)200V 100mV1000V 1V ±(0.8%+2)200V 100mVAC Voltage 750V 1V ±(1.2%+10)200uA 0.1mA2000uA 1uA ±(1%+2)DC Current 20mA 10uA200mA 100uA ±(1.2%+2)10A 10mA ±(2%+2)200? 0.1?2000? 1?Resistance 20K? 10? ±(0.8%+2)200K? 100?2000K? 1000? ±(1%+2)Color: Yellow/BlackSize: Approx. 123mm x 67mm x 20mm (LxWxH)Quantity: 1 PcNote:Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bidDue to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!Package Contents:1 x Digital Multimeter (Not Included Battery) 1 x Test Lead Set 1 x User Manual
